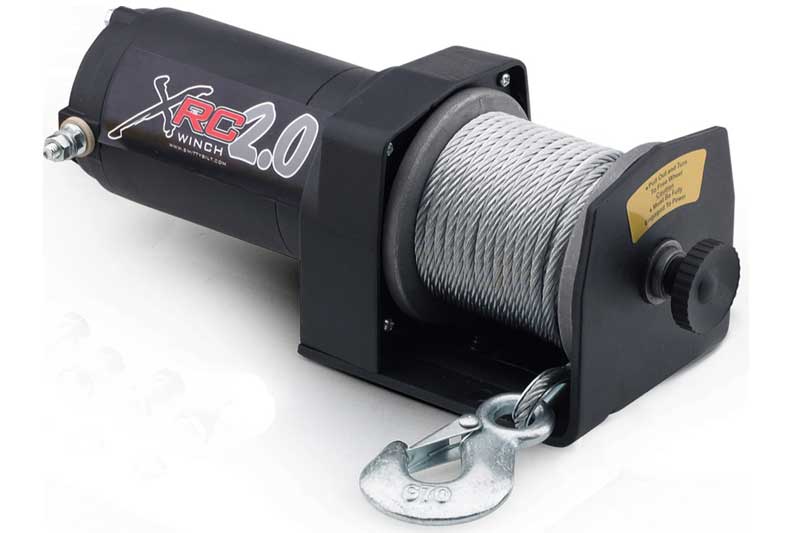

Smittybilt XRC 2.0 Winch

Smittybilt offers the latest XRC 2.0 for ATV, the most powerful 2,000LB winch today and it comes standard with better and more accessories and features than most winches in its type. Smittybilt XRC 2.0 is a three stage planetary gear system with 1.0 horsepower and a 153: 01 gear ratio that conveys fast line speed with or without load.

Features

Universal Fit (Not Vehicle Specific)
153:1 gear ration delivers lightning fast line speed under load or not
Permanent Magnet Motor
3 Stage Planetary Gear Train
Easy To Install
Work great on ATVs, boats, and trailers

Lowest Prices Online with deep discounts
Buy with Confidence using our secure online store
Expert Support service before & after the sale
Authorized Dealer:

Product Information

List Price:

~~$161.11 - $161.11~~

Our Price:

$120.83 - $120.83

Free Shipping

Rating:

4.3 (16 reviews)

Part #:

111292

UPC:

View available part numbers for this product line

Have a Question? Talk to an expert. We know our products. 1-813-769-2451

Product Details
Installation
Warranty
Vehicle Fitment
Reviews

XRC2 Specs

Rated line pull	Motor	Geartrain	Brake	Drum diameter/Length
2,000lbs (960kgs) Single line	Permanent magnetic DC 12V ,1.0Hp	3-Stage Planetary	-	1.24”/2.88" (31.5mm/73.1mm)
Weight	Rope	Fairlead	Controls	Gear ratio
12 lbs. (5.4 kg)	5/32” x 49’ (3.9mm x 14.9m) Steel	Roller	Remote switch, 11' (3.3m)	153:1

12V DC Performance Specs (first layer)

Line Pull	Line Speed	Motor	Pull by layer:
Lbs. (kg)	Ft./min (M/min.)	Current	layer/Lbs. (kg)
0	13 (3.9)	9 amps	1/2000 (907)
500 (227)	10.7 (3.2)	30 amps	2/1630 (740)
1000 (454)	7.7 (2.3)	58 amps	3/1380 (620)
1500 (680)	5.6 (1.7)	81 amps	4/1190 (540)
2000 (907)	3.3 (1)	110 amps	5/1050 (470)
			6/940 (420)
