Smittybilt X2O-17.5 Gen2 Waterproof Winch

Features
  • Waterproofing: IP68 Rating
  • Finish: Textured Black
  • Mounting Bolt Pattern: 10.0" x 4.50"
  • Overall Dimensions: 22.3"x7.5"x10.7" (L x W x H)
  • Mechanical Warranty: Lifetime
  • Electrical Warranty: 5 years
  • Lowest Prices Online with deep discounts
  • Buy with Confidence using our secure online store
  • Expert Support service before & after the sale
  • Authorized Dealer:
Product Information
List Price:
Our Price:
Rating:
Part #:
UPC:
Have a Question? Talk to an expert. We know our products. 1-813-769-2451
  • Product Details
  • Installation
  • Warranty
  • Vehicle Fitment
  • Reviews

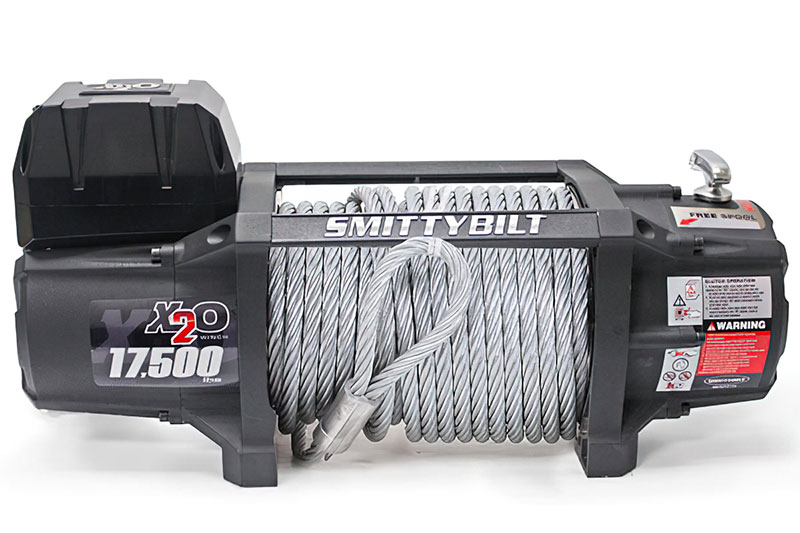

Smittybilt X2O-17.5 Gen2 Waterproof Winch Overview

Smittybilt X2O-17.5 Gen2 Waterproof Winch has been updated in every area to optimum performance and trouble-free operation. X2O-17.5 Gen2 is a comprehensive recovery system you can rely on in every situation you get into. This winch is equipped with the powerful 6.6 HP Amphibious Series Wound motor connected to 3 stages planetary gearbox for lightning-fast line speed and excellent performance. Boasts a staggering 17,500lbs pulling capacity, 430:1 gear rate and waterproof 500 AMP solenoid box with multiple mount points while each X2O winch includes a heavy-duty hand remote that can be used either wired or wireless operation. X2O-17.5 Gen2 comes with rugged UV-resistant matte black coating, stainless steel hardware and aluminum crossbars that will last a lifetime. It also includes a braided steel wire cable with hammer forged hook, a 4-way roller fairlead and a larger clutch lever for easy use. They are backed by a limited lifetime warranty.

X2O 17.5 Gen2 Specs
Rated line pullMotorGeartrainBrakeDrum diameter/Length
17,500 lbs. (7,954kgs) Single Line6.6hp Series Wound3-Stage PlanetaryAutomatic Out-Of-Drum3.45"/10" (88mm/254mm)
WeightRopeFairleadControlsGear ratio
150 lbs. (68 kg)1/2" x 98.5' (12.7mm x 30m) Steel4-Way RollerRemote switch, 12' (3.7m) lead430:1
12V DC Performance Specs (first layer)
Line PullLine SpeedMotorPull by layer:
Lbs. (kg)Ft./min (M/min.)Currentlayer/Lbs. (kg)
023.62 (7.2)71 amps1/15500 (7045)
6000 (2721)9.18 (2.8)200 amps2/12060 (5482)
10000 (4536)5.90 (1.8)300 amps3/10082 (4583)
12000 (5454)4.92 (1.5)350 amps4/8662 (3937)
14000 (6363)4.26 (1.3)395 amps-
17500 (7937)2.95 (0.9)450 amps-
