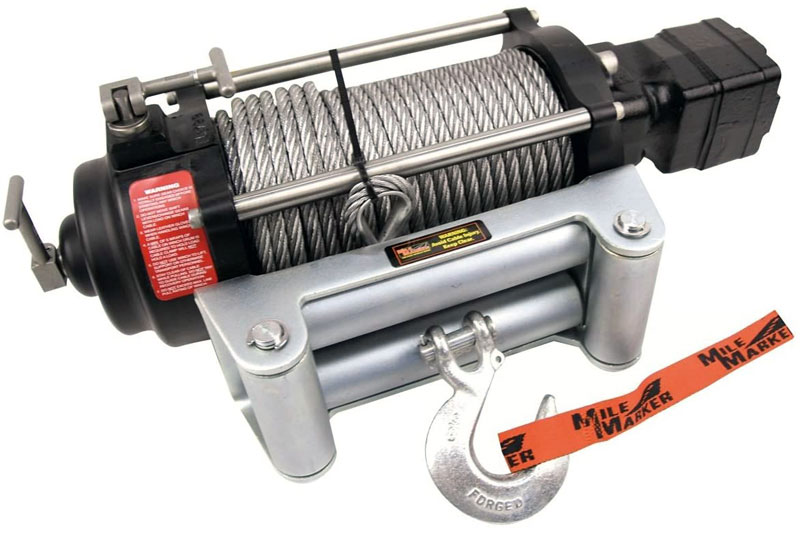

Mile Marker H10500 Hydraulic Winch

The Mile Marker H10500 Series Hydraulic winch is independent from its solenoid control valve to give more freedom in application and can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system. Utilizing the vehicle’s power steering system as its power source ensures the H10500 to run continuously without draining the battery. Completely element proof construction, corrosion and water resistant, the H10500 features two speed spooling, a mechanical lock system, stainless steel tie bars and fasteners, 100’ of steel cable, 10,500 pounds of pulling capacity and requires a vehicle specific 34 Series valve adapter kit for installation and operation.

Features
  • Freespooling
  • Mechanical Lock
  • Sealed Against the Elements
  • Can Use Underwater
  • Corrosion Resistant
  • Stainless Steel tie bars and fastener
  • 2 Speed
  • Integrated Solenoid Valve
  • 100 Feet Galvanized Aircraft Cable
  • Lowest Prices Online with deep discounts
  • Buy with Confidence using our secure online store
  • Expert Support service before & after the sale
  • Authorized Dealer:
Product Information
List Price:
Our Price:
Rating:
Part #:
UPC:
Have a Question? Talk to an expert. We know our products. 1-813-769-2451
  • Product Details
  • Installation
  • Warranty
  • Vehicle Fitment
  • Reviews
H10500 Specs
Rated line pull Motor Geartrain Brake Drum dia./Len.
10,500 lbs, (4763 kg), single-line 17.9 cubic inch Planetary - 2.5" X 9" (63.5 mm X 228.6 mm)
Weight Rope Fairlead Controls Gear ratio
103 lbs (47 kgs) 3/8" X 100' (nominal 14,400 lbs), (9.53 mm X 30.5 m) Roller Not Included 6:1
H10500 Performance
Layer of Cable Line speed-low gear (FPM) Rated pull (lbs.) Line speed-high gear (FPM) Rated pull (lbs.)
1 5.65 10,500 31 1,600
2 6.43 8,500 36 1,300
3 7.41 7,400 42 1,200
4 8.58 6,400 48 1,000
