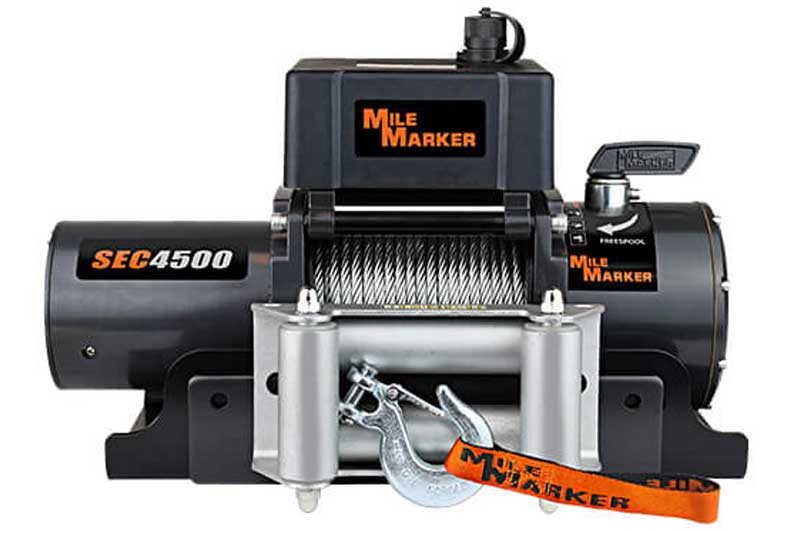

Mile Marker SEC4500 ATV Winch

Mile Marker offers a new line-up of ATV & UTV winches that are trail-proven to provide top-of-the-line recovery speeds and a new braking system. Mile Marker Tough Series offers efficient and superior pulling strength while maintaining a low electric current. Mile Marker Tough Series Winches provide the mighty recovery power of a full size winch in a rugged, compact package.

Mile Marker ATV/UTV Tough Series has a "power in" and "power out" functions and also features 250 amp rated solenoid, fast line speeds, redesigned braking system, roller fairlead, an all-metal planetary gearing and free spooling. Free spooling lets the user extend their cable without running winch.

Mile Marker Tough Series Winches may be small but are unbeatable when it comes to durability and power. This is the fastest Mile Marker's winch ever!

  • Lowest Prices Online with deep discounts
  • Buy with Confidence using our secure online store
  • Expert Support service before & after the sale
  • Authorized Dealer:
Product Information
List Price:
Our Price:
Rating:
Part #:
UPC:
Have a Question? Talk to an expert. We know our products. 1-813-769-2451
  • Product Details
  • Installation
  • Warranty
  • Vehicle Fitment
  • Reviews
Features
  • 3.7 HP Series Wound Motor
  • Low Amperage Draw
  • Rugged Planetary Gear Sets
  • Clockable Gear Housing
  • Submersible, 250 Amp Solenoid
  • Automatic Load Holding Brake
  • Corrosion Resistant Stainless Steel Fasteners
  • 79' of Steel Cable
  • Roller Fairlead
  • Waterproof
  • Handheld Remote Controls
  • Includes Mounting Plate
  • Includes Tow Strap for Car Haulers
SEC4500 Specs
Rated line pull Motor Geartrain Brake Drum dia./Len.
4500 lbs (2041 kg) Single line 12V DC,input power: 3.7Hp (2.7kw) 3-Stage Planetary Automatic Load 2.5" X 5.5" (63.5 mm X 140 mm)
Weight Rope Fairlead Controls Gear ratio
51 lbs (23 Kg) 1/4 x 79' (nominal 7,000 lbs., 3175 kg) (5.45 mm X 24 m) (5.45 mm X 25.9 m) Roller Power-In, Power-Out Remote, 12’ (3.7 m) 150:1
Performance Specs (first layer of drum)
Line Pull
Lbs. (kg)
Current Draw
Amps @ 12 V
Line Speed
ft/min (m/min)
03514 (4.3)
1500 (681)806.6 (2)
3000 (1362)1454.6 (1.4)
4500 (2043)1703.3 (1)
