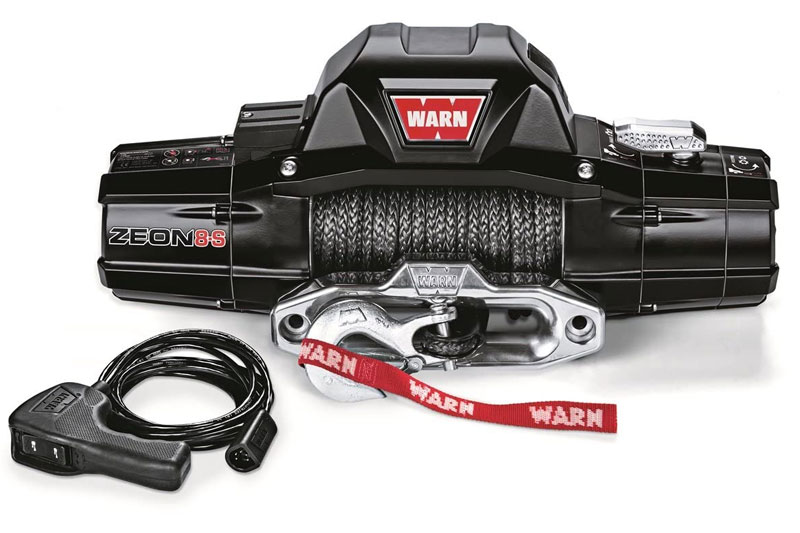

Warn ZEON™ 8-S Winch

Advanced, capable, and strong. Dont let the good looks fool you. We have packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

  • The same great features of the Zeon 8 winch
  • 8,000 lbs. (3630 kg) single-line pulling capacity
  • 100' of 3/8" Warn Spydura synthetic rope
  • Convertible control pack
  • Satin-black powder-coated finish
  • Stainless steel fasteners and clutch lever
  • Improved winch sealing
  • Large diameter winch drum
  • Integrated rope anchor
  • Backed by the Warn Limited Lifetime Warranty
  • Made in the U.S.A
  • Lowest Prices Online with deep discounts
  • Buy with Confidence using our secure online store
  • Expert Support service before & after the sale
  • Authorized Dealer:
Product Information
List Price:
Our Price:
Rating:
Part #:
UPC:
Have a Question? Talk to an expert. We know our products. 1-813-769-2451
  • Product Details
  • Installation
  • Warranty
  • Vehicle Fitment
  • Reviews
Warn Zeon 8-S Winch Specs
Rated line pull Motor Geartrain Brake Drum diameter/Length
8,000 Lbs., (3630 kg) single-line 12V DC, Series Wound 3-Stage Planetary Automatic Mechanical Cone 3.15"/9.0" (80mm/229mm)
Weight Rope Fairlead Controls Gear ratio
75 lbs. (34 kg)) 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic Roller Remote switch, 12' (3.7m) lead 162:1
12V DC Performance Specs (first layer)
Line Pull
Lbs. (kg)
Line Speed
Ft./min (M/min.)
Motor
Current
Pull by layer:
layer/Lbs. (kg)
0 35 (12.8) 63 amps 1/8000 (3629)
2000 (910) 17.2 (5.2) 167 amps 2/6777 (3074)
4000 (1810) 11.7 (3.6) 255 amps 3/5878 (2666)
6000 (2720) 8.5 (2.6) 335 amps 4/5190 (2354)
8000 (3630) 6.2 (1.9) 413 amps 5/4646 (2107)
