Warn VRX™ 35 and 35-S Winches

Overview

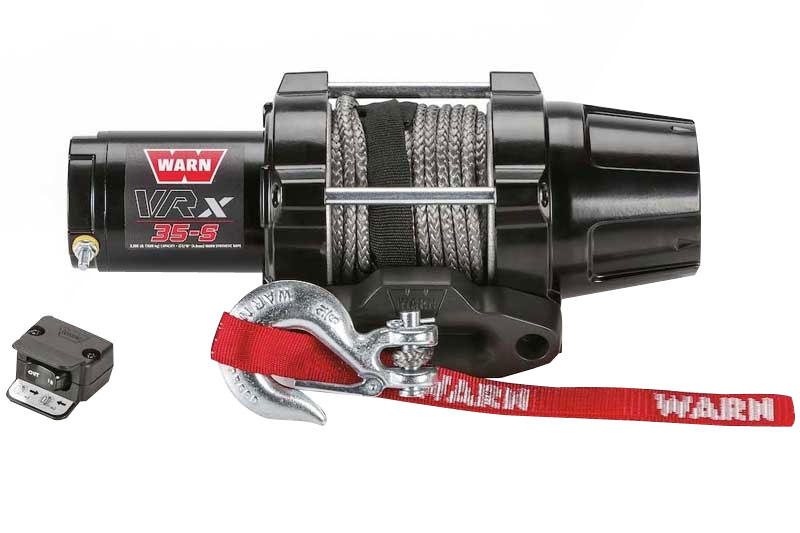

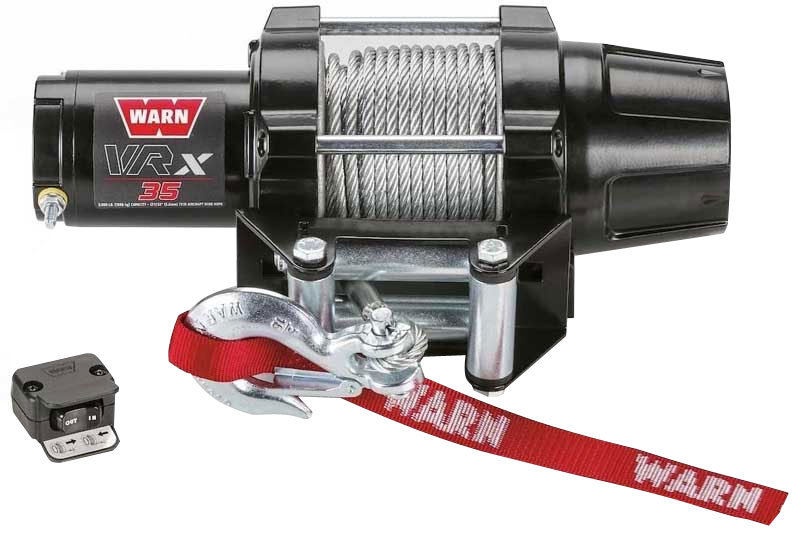

Warn VRX™ 35 and 35-S are hard-working winches with a pulling capacity of 3,500 lbs. They feature a rigid all-metal construction and IP68 waterproof sealing to keep the elements out and extend the life of the winch. Warn has also enhanced their clutch, using their decades of experience in 4WD hub-lock designs. And, the best feature of these winches is its price. Warn has kept the price on-point while offering premium performance and architecture. The Warn VRX™ 35 has a steel wire rope while the 35-S includes a light but durable synthetic rope. Both of these best-value winches are covered by an unbeatable lifetime warranty for mechanical parts and a 3-year warranty for electrical parts.

Guides
Features
  • VRX 35 includes 50' of durable 7/32" steel rope, 50' of lightweight, easy-to-handle 3/16" synthetic rope for the VRX 35-S, roller fairlead, and zinc-plated hook
  • Complete IP68 waterproof sealing keeps all the elements out
  • Hard-working 3,500 lb. capacity
  • Semi-gloss black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding mechanical brake for great control
  • Durable all-metal construction
  • Smooth and reliable all-metal three-stage planetary gear train
  • Handlebar-mounted rocker switch
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
Warn VRX™ 35 | 35-S Spec
Rated line pullMotorGeartrainBrakeSealing
3500 Lbs. (1588 kg) single-line12V permanent magnet3-stage planetaryMechanical BrakeIP68 Waterproof
WeightRopeFairleadControlsGear Ratio
29.3 lbs (13.3 kg) 50' x 7/32" (15mx5.5mm) Steel | 50' x 3/16" (15m x 4.8mm) Synthetic Roller | Cast Aluminum HawseHandlebar-Mounted Rocker Switch153:1
12V DC Performance Specs (first layer)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
015.8 (4.8)20 amps1/3500 (1588)
500 (227)13.4 (4.1)41 amps2/2934 (1331)
1000 (454)11.2 (3.4)60 amps3/2525 (1145)
1500 (680)9.3 (2.8)79 amps4/2116 (754)
2000 (907)7.6 (2.3)100 amps5/1975 (896)
2500 (1134)6.2 (1.9)124 amps-
3000 (1361)5.0 (1.5)155 amps-
3500 (1588)4.0 (2.1)192 amps-
