Warn VRX™ 25 & 25-S Winches

Find your product here:

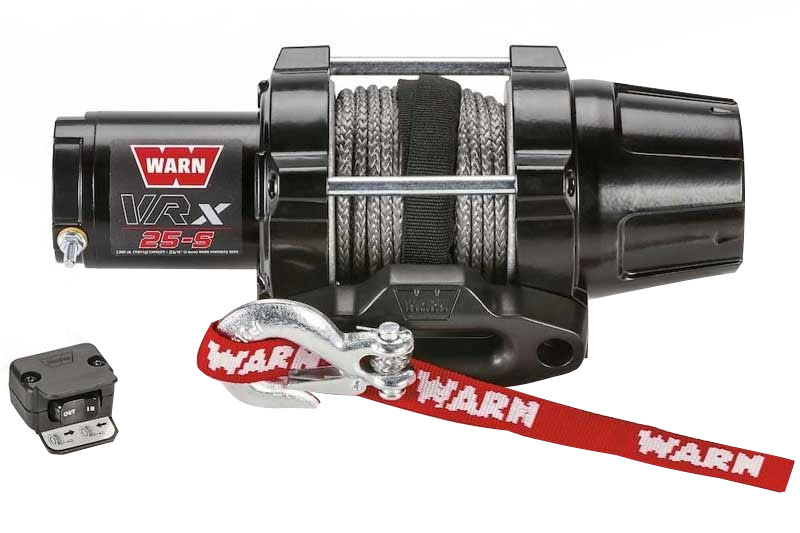

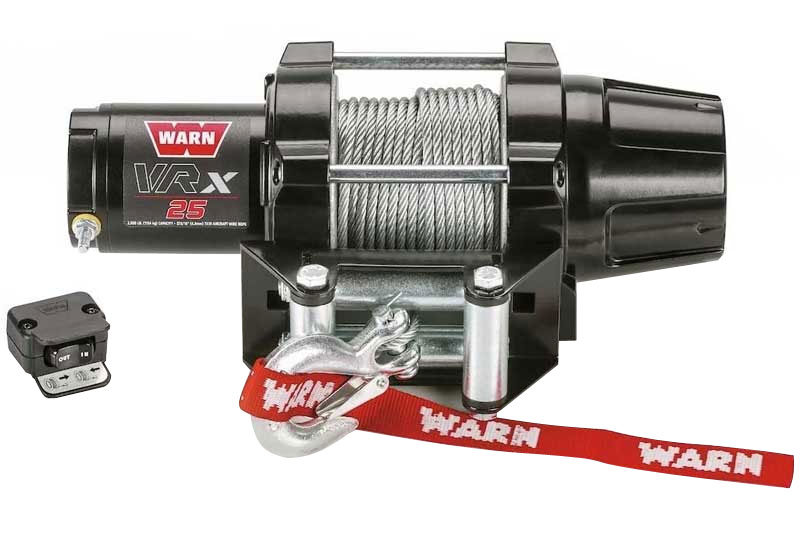

Warn VRX™ 25 and 25-S Winches

Overview

Warn VRX™ 25 and 25-S enables ATV owners to equip their ride a premium winch at a budget-friendly price. With an all-metal construction and complete IP68 waterproofing, these winches are no pushovers. They will deliver unparalleled performance with its 2,500 lbs pulling capacity and can withstand any abuse the outdoors can dish out. Warn has enhanced the clutch based on the company’s 4WD hublock design. The VRX™ 25 comes with a steel rope while the 25-S includes a synthetic rope. Both are covered by a lifetime warranty for the mechanical parts and a 3-year warranty for electrical components.

Features
  • VRX™ 25 Includes 50' x 3/16" steel rope, 50' of lightweight, easy-to-handle 3/16" synthetic rope for VRX 25-S, roller fairlead and zincplated hook
  • Robust 2,500 lb. capacity is perfect for ATVs
  • Load-holding mechanical brake for great control
  • Durable all-metal construction
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Complete IP68 waterproof sealing keeps all the elements out
  • Semi-gloss back powder-coated finish and stainless steel fasteners for corrosion resistance
  • Smooth and reliable all-metal three-stage planetary gear train
  • Handlebar-mounted rocker switch
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
Warn VRX™ 25 | 25-S Spec
Rated line pullMotorGeartrainBrakeSealing
2500 Lbs. (1134 kg) single-line12V permanent magnet3-stage planetaryMechanical BrakeIP68 Waterproof
WeightRopeFairleadControlsGear ratio
23.5 lbs (10.6 kg) | 27.3 lbs (12.4 kg)50’ x 3/16” (15m x 5mm) Steel, 50’ x 3/16” (15m x 5mm) Synthetic Roller | Cast Aluminum HawseHandlebar-Mounted Rocker Switch153:1
12V DC Performance Specs (first layer)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
017.5 (5.3)20 amps1/2500 (1134)
500 (227)14.3 (4.4)45 amps2/2141 (971)
1000 (454)12.0 (3.6)71 amps3/1872 (849)
1500 (680)9.9 (3)98 amps4/1663 (754)
2000 (907)8.0 (2.4)128 amps5/1496 (679)
2500 (1134)6.8 (2.1)159 amps-
