Warn VR EVO 10 & 10-S Winches

VR EVO 10 Winch

- WAR-103252

Price: $755.00 Sale Price: $604.00

Availability:In Stock

We have not yet cataloged this product for fitment or product details and therefore cannot assume responsibility for ordering errors. Please read the description carefully and confirm fitment and features via the manufacturer before ordering.

Rated line pull	Motor	Geartrain	Brake	Drum Dia./Len.
10,000 lbs (4536 kgs)	12V DC, Series Wound^™	3-Stage Planetary	Spring Brake	2.5"/9.0" (6.73cm/23cm)
Weight	Rope	Fairlead	Controls	Gear ratio
91.93 lbs (41.7 kgs)	Steel - .354" x 90' (9mm x 27.4m)	Roller	Albright Contactor	218:1

12V DC Performance Specs (based on first layer of drum)

Line Pull	Line Speed	Motor	Pull by layer:
Lbs. (kg)	Ft./min (M/min.)	Current	layer/Lbs. (kg)
0	27.1 (8.3)	58 amps	1/10000 (4536)
2000 (910)	13.9 (4.2)	125 amps	2/8226 (3731)
4000 (1810)	9.9 (3.0)	185 amps	3/6987 (3169)
6000 (2720)	8.2 (2.5)	244 amps	4/6072 (2754)
8000 (3630)	6.5 (2.0)	303 amps	5/5370 (2436)
10000 (4536)	5.2 (1.6)	358 amps

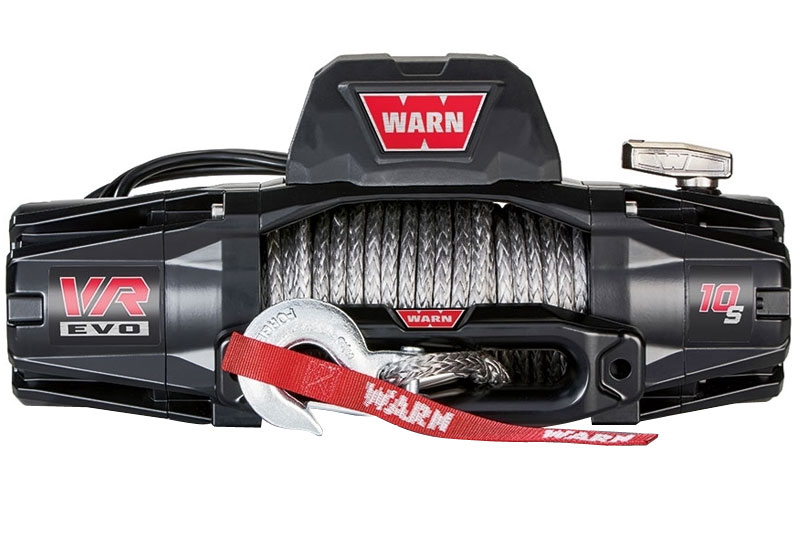

VR EVO 10-S Winch

- WAR-103253

Price: $1,187.49 Sale Price: $949.99

Availability:In Stock

Rated line pull	Motor	Geartrain	Brake	Drum Dia./Len.
10,000 lbs (4536 kgs)	12V DC, Series Wound^™	3-Stage Planetary	Spring Brake	2.5"/9.0" (6.73cm/23cm)
Weight	Rope	Fairlead	Controls	Gear ratio
72.40 lbs (32.84 kgs)	Synthetic - 3/8" x 90' (9.5mm x 27.4m)	Die Cast Hawse	Albright Contactor	218:1

12V DC Performance Specs (based on first layer of drum)

Line Pull	Line Speed	Motor	Pull by layer:
Lbs. (kg)	Ft./min (M/min.)	Current	layer/Lbs. (kg)
0	27.1 (8.3)	58 amps	1/10000 (4536)
2000 (910)	13.9 (4.2)	125 amps	2/8226 (3731)
4000 (1810)	9.9 (3.0)	185 amps	3/6987 (3169)
6000 (2720)	8.2 (2.5)	244 amps	4/6072 (2754)
8000 (3630)	6.5 (2.0)	303 amps	5/5370 (2436)
10000 (4536)	5.2 (1.6)	358 amps

Learn More About Warn VR EVO 10 and 10-S Winches

Overview

Warn VR EVO 10 and 10-S Winches boast a 10,000 lbs. pulling capacity and are best-suited for 1/2-ton pickups, Jeeps, and larger SUVs. These powerful winches feature waterproof construction and a reliable Albright contactor located inside the control pack for superior performance and durability in all conditions. Warn VR EVO winches offer the lowest amp draw and fastest line speed under load. These winches are available with a steel or synthetic rope.

Features
