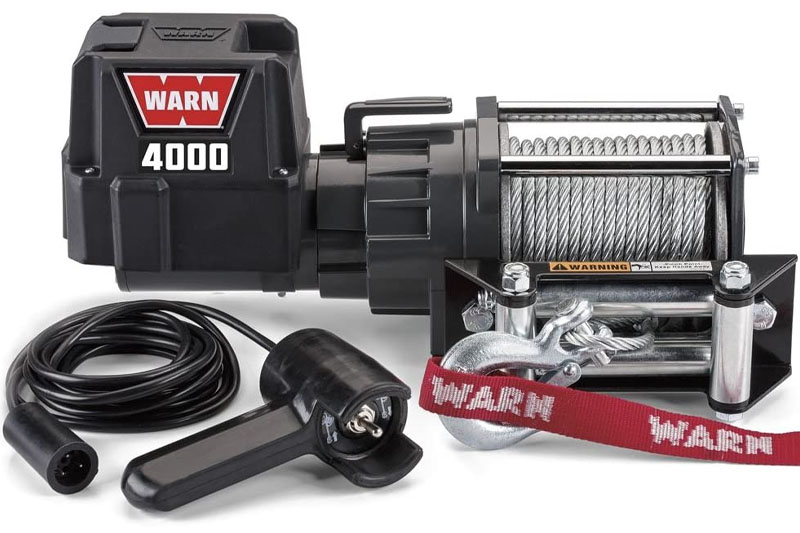

Warn 4000 DC Utility Winch

The Warn 4000 DC is a 12V electric powered winch that offers heavy-duty pulling capacity. It features a permanent 1.9 HP permanent magnet DC motor and reliable duty cycle for those tough pulls and recoveries. This winch includes a 43’ wire rope, remote control, and roller fairlead to get you ready right away.

4,000 lbs. (1814 kgs) pulling capacity lets you move a variety of heavy objects
12-volt power for portability, ideal for use on trailers or hitch mounts
Outstanding duty cycle, durability, and reliability
Powerful 1.9 horsepower permanent magnet DC motor with outstanding duty cycle
43' of 7/32" (13m of 6mm) wire rope with hook and clasp
Remote plug accepts 12' (3.7m) corded remote (included)
Convenient easy-lift clutch lever
Durable, reliable three-stage planetary geartrain
Dynamic and mechanical braking for excellent control and holding power

Lowest Prices Online with deep discounts
Buy with Confidence using our secure online store
Expert Support service before & after the sale
Authorized Dealer:

Product Information

List Price:

~~$606.25 - $606.25~~

Our Price:

$485.00 - $485.00

Free Shipping

Rating:

.0 (0 reviews)

Part #:

111292

UPC:

View available part numbers for this product line

Have a Question? Talk to an expert. We know our products. 1-813-769-2451

Product Details
Installation
Warranty
Vehicle Fitment
Reviews

Warn 4000 DC Utility Winch Specs

Rated line pull	Motor	Geartrain	Brake	Drum dia.
4,000 lbs. (1864 kgs) Single line	.9 HP Permanent Magnet, 12V DC	3-Stage Planetary	Mechanical and Dynamic	2.375" (6.03 cm)
Weight	Rope	Fairlead	Controls	Gear ratio
18 lbs. (8.2 kg.)	Wire, 3/16" X 35' (10.7 m)	Roller	Remote with 12'(3.7 m) Lead	176:1

12V Performance Specs (first layer of drum)

Line Pull lbs.(kgs.)	Line Speed Ft./min.(M/min)	Motor Current	Pull by layer layer/Lbs.(Kgs.)
0	7.2 (2.2)	6.7 Amps	1/4000 (1814)
500 (226.8)	6.8 (2.0)	24.1 Amps	2/3410 (1550)
1000 (453.6)	5.7 (1.7)	44.7 Amps	3/31701 (1440)
2000 (907.2)	10.9 (3.3)	180 Amps	4/2950 (1340)
3000 (1361)	8.9 (2.7)	210 Amps
4000 (1814)	6.9 (2.1)	240 Amps

Operator's Manual (PDF)

Warn Warranty Information
