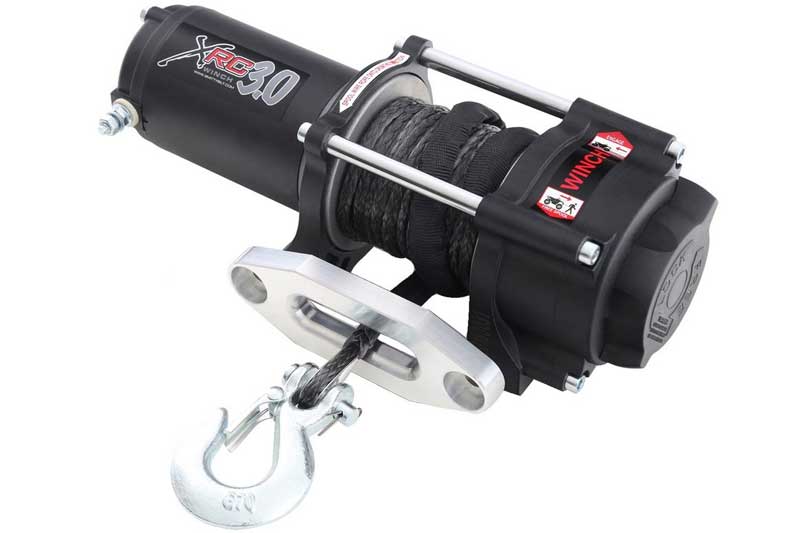

Smittybilt XRC 3.0 Comp-Series Winch with Synthetic Rope

Smittybilt's XRC 3.0 Winch encompasses all the best features you would want in a winch, including lightweight synthetic Rope. Every XRC3 (3,000 Lb.) winch features a 3.9 HP permanent magnet motor and a planetary gear system with a 136:1 gear ratio that will deliver power and reliability at a premium price. This is a perfect recovery system for ATV & UTV applications, with the muscle and dependability to bail you out of any situation. The XRC 3.0 has all the heavy-duty toughness you're looking for.

Rated line pullMotorGeartrainBrakeDrum diameter/Length
3,000lbs (1,360kgs) Single line Permanent magnetic DC 12V ,1.0Hp3-Stage PlanetaryYes1.96”/3.01" (50mm/76.5mm)
WeightRopeFairleadControlsGear ratio
17 lbs. (7.7 kg)13/64" x 40’ (5.1mm x 12.2m) SteelHawseHandlebar mini rocker switch, 11.5 ft (3.5m)136:1
  • Lowest Prices Online with deep discounts
  • Buy with Confidence using our secure online store
  • Expert Support service before & after the sale
  • Authorized Dealer:
Product Information
List Price:
Our Price:
Rating:
Part #:
UPC:
Have a Question? Talk to an expert. We know our products. 1-813-769-2451
  • Product Details
  • Installation
  • Warranty
  • Vehicle Fitment
  • Reviews
Features
  • Wired remote control with 11.5' Lead
  • Smittybilt Advantage Warranty
  • 2-stage planetary gearbox
  • Rated Line Pull = 3000 lbs

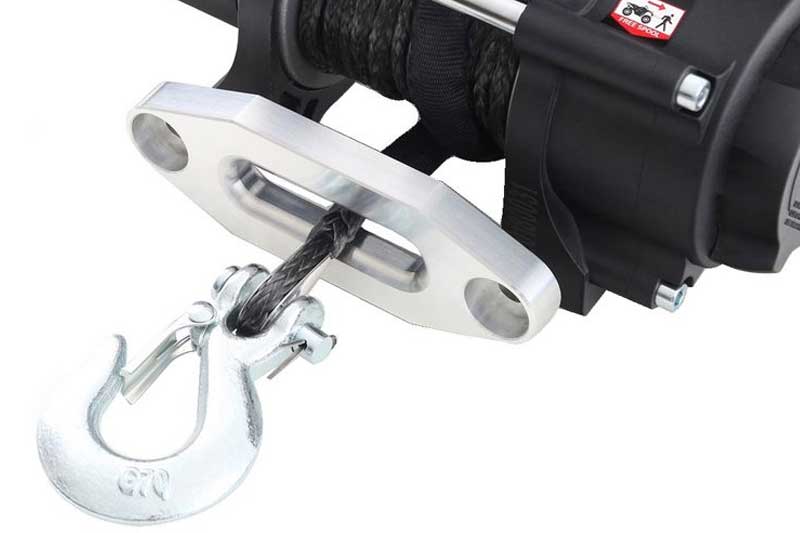

  • Aluminum hawse fairlead
  • Cable = 40' Of Synthetic DSK-75 Rope
  • Braking Action = Self-Locking
  • 3.9HP motor
  • 136:1 gear ratio
12V DC Performance Specs (first layer)
Line PullLine SpeedMotorPull by layer:
Lbs. (kg)Ft./min (M/min.)Currentlayer/Lbs. (kg)
024.5 (7.5)15 amps1/3,000 (1360)
1000 (454)14.7 (4.5)75 amps2/2520 (1,140)
2000 (907)10.5 (3.2)120 amps3/2170 (985)
3000 (1360)6.9 (2.1)175 amps4/1870 (849)
   5/1,680 (760)

Rated Single Line Pull (lbs.)TypeVoltageWARNING CA Proposition 65WARNING CA Proposition 65 Message
3000Automotive12 DCYesWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
