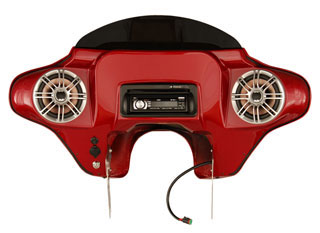

Dead Center fairing has a number of advantages when fitted on your motorcycle. The fairing protects you from the wind, helps your motorcycle look great and has a stereo for your entertainment. The parts available under this kit include the Dead Center cycles fairing full stereo, stereo ready and the Dead center cycles mounting kit. The fairings are very easy to install on a motorcycle without using any special tools. The stereo is strong, clear and is easy to use and does not need to be unplugged when you switch off your motorcycle because it does not drain the battery. Dead Center fairing can be expanded easily using accessories and is convenient for the rider since it can be serviced easily.
In addition to the standard features, also includes retractable stereo cover, Sony DSX 565 UP stereo, Polk Audio db651 Marine Certified 6-1/2" speakers, internally-mounted antenna, and custom wiring harness with installation instructions.
In addition to the standard features, also includes retractable stereo cover, pre-cut speaker holes, wiring harness and connectors, and stereo backstrap.
On compatible Harley models with quick-detach style windshields, the Dead Center Fairing offers quick-detach and locking features. Note that this section does not apply to Yamaha Road Star or Victory models in which case the Dead Center Fairing is of the bolt-on, non-locking style.
Attaches/detaches in seconds (no tools required) utilizing stock windshield mounts. Quick detach mounting brackets (patent pending) are stainless steel and mirror-polished.
Because the stock windshield mounts are utilized you can easily and quickly swap between your Dead Center Fairing and your windshield. Latches onto the bike automatically when attached; latch is lockable with the turn of a key.
Fairing lock is inaccessible when the steering head is locked for an extra layer of security.
Quick detach mounting brackets (patent pending) are stainless steel and mirror-polished; all hardware is corrosion-proof stainless steel.
Accessing the inside of the fairing is simple. The outer fairing shell can be easily taken off after removing the 3 windshield screws and 2 lower screws.
The Dead Center Fairing includes a well-matched audio system that delivers clear, strong sound even at higher speeds and over typical aftermarket exhaust pipes.
All current systems include a Sony stereo head unit with Polk Audio speakers, and an internally mounted antenna.
Auxiliary and USB inputs. The CDX-GT570UP features both an Auxiliary mini jack and USB port. Allowing you to power up, and play songs from, your personal MP3 device or Thumb Drive.
Satellite ready. The CDX-GT570UP is compatible with both XM Radio and Sirius Satellite Radio.(Additional equipment required) We offer XM or Sirius, installed, for 150.00.
CD/CD-R/CD-RW/MP3/WMA playback. Enjoy up to 10 complete albums of MP3 music and up to 20 of WMA from a single disc that you burn in one of these formats.
Pandora® Internet Radio Control. The CDX-GT570UP provides complete access to your Pandora account using your iPhone®.
Includes hand-held infrared remote control.
Tinted cover can be easily retracted into the fairing and provides extra protection when in the rain or washing your bike.
With 60 watts continuous and 180 watts peak power handling capability, the Polk db651 speakers are built to handle the higher power output of our Sony deck and more.
Marine Certified Polk db Series speakers are built tough to withstand the most extreme environments. A perfect match for a motorcycle.
3/4" composite Dome Tweeter with Neodymium magnet for clear, detailed highs.
Low-mass 2-Layer Kapton Voice Coil Former is lightweight for high sound output creating minimal weight impact on our detachable fairing. Kapton's high melting temperature (725°F/400°C!) ensures high power handling and kick-butt reliability.
Durable Butyl Rubber Surround won't fall apart under the stress of extreme temperatures, sunlight or time, for years of great Polk Audio sound.
Sensitivity: 92db. Higher sensitivity means better efficiency resulting in more loudness for a given amount of power input.
Upgrade to the MM651 model and get 100 watts continuous and 200 watts peak power handling capability, these are an ideal option for those planning on adding an amp or if you're just looking for a higher-end speaker option.
Marine Certified, just like the db651 models, and built tough to withstand the most extreme environments.
Large diameter 30mm voice coil with Neodymium magnet. 1" tweeter is larger than the 3/4" on the db651 model.
Woven Glass Composite Cones with durable Butyl Rubber Surround provide superb reliability regardless of weather, and regardless of the pokes and prods of your buddies! They also feature tremendous stiffness-to mass ratio. Lower mass means faster transients and finer detail.
Neodymium driver magnets, are about 1/10 the weight of a comparable ceramic magnet and much more powerful.
Sensitivity: 94db. Higher sensitivity means better efficiency resulting in more loudness for a given amount of power input.
Features Deutsch DT Series electrical connectors, as utilized by Harley-Davidson.
Connectors utilize a seal to protect electrical contacts from dirt and moisture and can be serviced as outlined by your HD service manual.
Female connector is mounted firmly on the motorcycle using a mounting clip; male connector is on a dongle coming off the fairing. No loose wires or connectors are left on your bike when the fairing is removed.
Accepts factory Fairing Air Deflectors. (Such as smoked HD p/n 58120-96A or dark smoked HD p/n 57740-05. Uses pre-2008 3-hole mounting pattern). Compatible with 1996+ FLHT windshield bags -- always check for sufficient visibility over the bags. Pouches can also be mounted to inside of fairing above stereo without impacting visibility.
Accepts 1996+ FLHT fairing bra (cutting of elastic headlight surround is required).
Ample dash area above stereo for mounting accessories such as gauges, surface mounted GPS or satellite receivers, pouches/bags, stickers or custom graphics.
The Dead Center Fairing fits the following models:
1994+ Harley Davidson FLHR Road King, including the Road King Standard (FLHR), Road King Classic (FLHRC) and Road King Custom (FLHRS)
Note: Road King Custom (FLHRS) models require the factory quick detach windshield mounting kit, removal of the chrome air deflector and the chrome trim strip on top of the nacelle (they must be replaced with the Road King Standard style handlebar cover HD p/n 67866-03 and chrome nacelle chrome trim HD p/n 67868-03). The turn signals on Road King Custom (FLHRS) models must also be relocated because in the factory location on the handlebars they will be hidden behind the fairing. One solution is to mount the Auxiliarly Lighting Kit (HD p/n 69289-05) with turn signals mounted below the passing lamps. Another is the HD Custom Touring Front Bullet Turn Signal Kit (HD p/n 69577-06).
2000+ Harley Davidson Twin Cam FL front-end Softail models including Heritage Softail Classic (FLSTC), Softail Deluxe (FLSTN), 2006 Heritage Softail (FLST) and Fat Boy (FLSTF) models.
Note: Fat Boy (FLSTF) and 2006 Heritage Softail (FLST) models require either an Auxiliary Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor Kit (HD p/n 58270-02). A quick-detach windshield mounting kit is also required. All Fat Boy (FLSTF) and 2006 Heritage Softail (FLST) models require relocation of the turn signals such as below the passing lamps, because in the factory location on the handlebars they will be hidden behind the fairing.
Note: Deluxe (FLSTN) models require a quick-detach windshield mounting kit.
Note: The fairing will also fit 1999 and older FL front-end Softail models but due to the rigid mounted non-counterbalanced Evo engine the CD player may skip - we do not guarantee that CD's will work without skipping on these models. Also, due to thicker passing lamp brackets used on some earlier evo models, the customer may need to eliminate any washers between the lower quick-detach windshield mounts and the passing lamps and the fairing may not attach/detach as smoothly on these models, as on the later models. This is not a problem if such an older passing lamp bracket is replaced with the latest FLSTC passing lamp bracket.
1999+ Yamaha Road Star models including Road Star, Midnight, Silverado, Midnight Silverado, Silver Edition and Silverado Silver Edition models. This is a bolt-on style fairing, in the same manner as the factory windshield, and is NOT quick detach and does NOT lock to the motorcycle.
Note: Requires the factory windshield mounting kit. If not previously installed on the motorcycle this can be ordered from Yamaha and is part number STR-4WM03-40-00.
Note: The toggle switch that turns on the auxiliary lamps is located on the back left side of the right lamp and will hit the fairing when installed. The right and left lamps must be swapped or the switch relocated in order for the Dead Center Fairing to fit without interference.
Victory Hammer, Vegas and Kingpin (including 8-ball and Jackpot) models. This is a bolt-on style fairing utilizing billet clamps (included) that go around the front forks. This model is NOT quick detach and does NOT lock to the motorcycle.
Note: Requires that the factory speedometer, or speedometer and tachometer (Hammer) be relocated to the fairing. Kit includes spacer ring for the speedometer on Vegas and Kingpin.
