Mile Marker PE2000 Utility Winch

Mile Marker PE2000 Utility Winch

Lowest Prices Online Buy with Confidence Expert Support
PE2000 Permanent Magnet Winch, 12V-2,000 lbs
  - MILEM-76-50100
Price: $185.08 Sale Price: $137.88

We have not yet cataloged this product for fitment or product details and therefore cannot assume responsibility for ordering errors. Please read the description carefully and confirm fitment and features via the manufacturer before ordering.
Rated line pullMotorGeartrainBrakeDrum dia./Len.
2,000 lbs. (907 kg) Single line 1.5 hp Perm Magnet (1kw) 12VPlanetary- 2.56"(65 mm) x 2.86" (72.6 mm)
WeightRopeFairleadControlsGear ratio
15 lbs (6.6 kg) 5/32" (4mm) x 50’ (15.2m)No Fairlead2-Button Control Pendant 153:1

Learn More About Mile Marker PE2000 Utility Winch

Overview

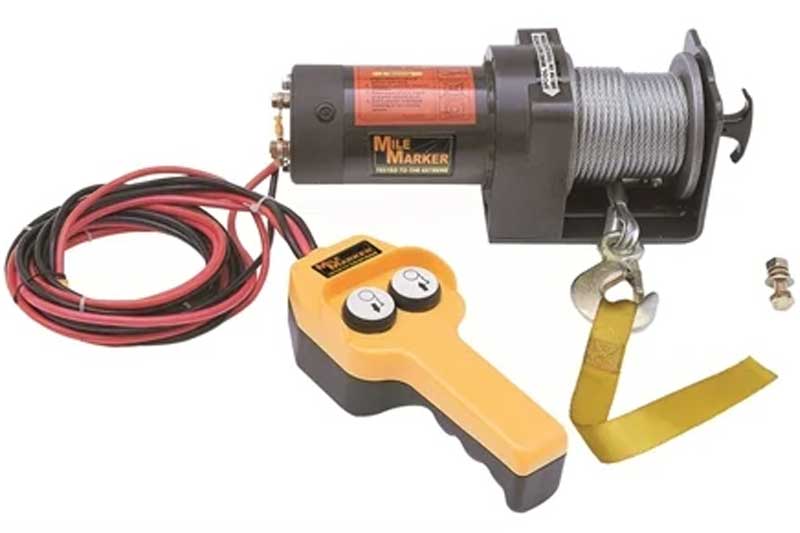

Mile Marker PE2000 is a compact utility winch designed for a variety of tasks. It features a 1.5 Hp (1kw) heavy-duty electric motor and a reliable planetary gear system for fast line speed. Equipped with a durable steel rope, a sturdy hook, and a control pendant. This Mile Marker winch is ready to go to work.

Features
  • Planetary Gear System for Fast Line Speed
  • Free-Spooling
  • Power In and Power Out
  • 1.5 Hp (1kw) Heavy Duty Electric
  • Permanent Magnetic Motor
  • Low Electric Current
Performance Specs (first layer of drum)
Line PullCurrent DrawLine Speed
Lbs.(Kgs.)Ampsft/min (m/min)
0 1414 (4.3)
1000 (454)609 (2.7)
1500 (680)907.5 (2.3)
2000 (907)1151.8 (1.8)
Line Pull & Cable Capacity By Layer
Cable LayerRated Line Pull Cable Capacity
lbs. (kgs.)ft/meters
1 2000 (907) 6 (1.8)
2 1636 (742) 13 (4)
3 1385 (628) 22 (6.7)
4 1200 (544) 33 (10)
5 1059 (480) 44 (13.4)
